What is Region in AWS? What are Availability Zones, Local Zones and Privately Hosted Zones?

AWS is a cloud-based service offered by Amazon named as Amazon Web Services (shortly named as AWS) with pay as you go pricing scheme and easy to install and use services. But as soon as you start developing an application or software you need to launch an EC2 instance. Here EC2 stands for Elastic Cloud Compute. It is one of the main services which let you lent virtual computers to perform computation and development of software or application. Whenever someone is intended to create an application on the cloud, EC2 instance is needed to be launched in a location.

To launch an EC2 instance AWS offers various geographic locations worldwide. These locations are composed of regions, availability zone, and local zones. Every Region is a different geographic territory. Every Region has different, separated areas known as Availability Zones. Local Zones give you the capacity to put resources, for example, process and capacity, in different areas closer to your end-clients. Resources aren't repeated across Regions except if you explicitly decide to do as such. So before discussing EC2 let's discuss Regions and Availability Zones.

To know more about AWS: Click Here

Region:

The region is the concept of providing physical locations to EC2 for developing and computing applications. Regions are nothing else but physical location around the world where data centers are located. Each group of this data center is called the Availability Zone.  Each region consists of different, isolated from another physical availability zone that makes it more stable and fault-tolerant.

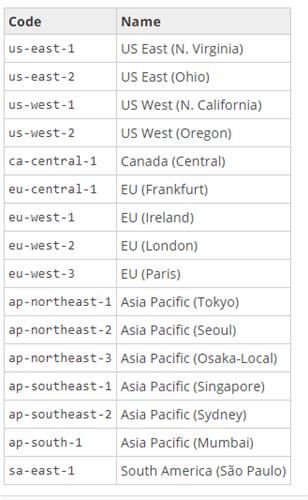

When the developer looks at the resources, later on, one will only look at the resources that are associated with the region specified by the developer itself. To launch an EC2 instance in a region, AMI within the same region is to be selected. If AMI is in another region, one can copy the AMI from another region. AWS gives a more broad worldwide impression than some other cloud supplier, and to help its worldwide impression and guarantee clients are served over the world, AWS opens new Regions quickly. AWS keeps up numerous geographic Regions, remembering Regions for North America, South America, Europe, China, Asia Pacific, South Africa, and the Middle East.

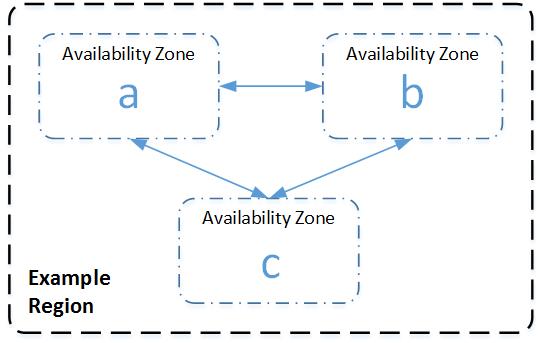

Availability Zone:

An Availability Zone (AZ) is at least one discrete server farms with excess force, systems administration, and network in an AWS Region. AZ's enable clients to work, create applications and databases that are all the more exceptionally accessible, fault-tolerant, and versatile than physical servers. All AZ's in an AWS Region are interconnected with high-transmission capacity, low-latency networking. All traffic between AZ's is encoded. The system execution is adequate to achieve simultaneous replication between AZ's. AZ's make dividing applications for high accessibility simple. On the off chance that an application is apportioned across AZ's, organizations are better secluded and shielded from issues, for example, power blackouts, lightning strikes, tornadoes, seismic tremors, and the sky is the limit from there. AZ's are truly isolated by a significant separation, numerous kilometers, from some other AZ, albeit all are inside 100 km (60 miles) of one another.

To launch an EC2 instance availability zones are to be chosen either by the user or by AWS. One can also distribute instances across various availability zones so that in any case if one instance fails, other instances can handle the requests in other availability zones. Elastic IP addresses can be used to cover up the failed instance by remapping the address to a new instance in different AZ. An Availability Zone has naming rules as Region Code followed by letter identifier. To ensure the confidentiality AWS independently map availability zones to different AWS accounts. For example, us-west-1a might be different for different accounts.  AZ ID is the unique id provided by AWS to each Availability zone so that coordination is easy. These AZ Ids can also be used to locate the resources of one account.

Local Zones:

AWS Local Zones place compute, stockpiling, database, and other select AWS benefits nearer to end-clients. With AWS Local Zones, you can without much of a stretch run exceptionally requesting applications that require single-digit millisecond latencies to your end-clients, for example, media and amusement content creation, constant gaming, supply re-enactments, electronic structure mechanization, and AI.

Each AWS Local Zone area is an expansion of an AWS Region where you can run your idleness touchy applications utilizing AWS administrations, for example, Amazon Elastic Compute Cloud, Amazon Virtual Private Cloud, Amazon Elastic Block Store, Amazon File Storage, and Amazon Elastic Load Balancing in geographic vicinity to end-clients. AWS Local Zones give a high-data transfer capacity, the secure association between neighborhood remaining tasks at hand and those running in the AWS Region, permitting you to consistently interface with the full scope of in-district benefits through a similar APIs and device sets.

It is an extension of the AWS region which has its own connection to the internet and supports AWS Direct Connect. A Local zone has nomenclature of region code followed by an identifier that is useful in locating the location.

Concept:

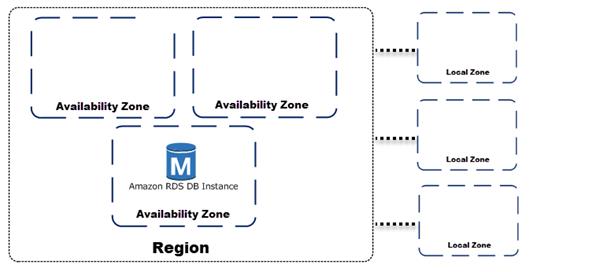

Every Region is totally autonomous. Every Availability Zone is disconnected, yet the Availability Zones in a Region are associated through low-inactivity joins. A Local Zone is an AWS foundation sending that spots select administrations closer to your end-clients. A Local Zone is an augmentation of a Region that is in an alternate area from your Region. It gives a high-data transfer capacity spine to the AWS framework and is perfect for idleness touchy applications, for instance, AI. The accompanying outline delineates the connection between Regions, Availability Zones, and Local Zones.

Network border groups:

Network border groups can be seen as a helping hand shown by AWS. Network border groups help in choosing the right region, availability zone, local zone.  A network border group is a one kind set of Availability Zones or Local Zones whose IP addresses are offered. Resources that can be allocated are:

Elastic IPv4 address

IPv6 VPC addresses

Private Hosted Zones:

A private hosted zone is a holder that contains data about how you need Amazon Route 53 to react to DNS questions for space and its sub-domains inside at least one VPCs that you make with the Amazon VPC administration. Here's the manner by which private facilitated zones work:

You make a private facilitated zone, for example, example.com, and indicate the VPCs that you need to connect with the facilitated zone.

You make records in the facilitated zone that decide how Route 53 reacts to DNS questions for your area and subdomains inside and among your VPCs. For instance, assume you have a database server that sudden spike in demand for an EC2 example in one of the VPCs that you connected with your private facilitated zone. You make An or AAAA record, for example, db.example.com, and you determine the IP address of the database server.

 When a candidate presents a DNS question for db.example.com, Route 53 returns the relating IP address. The application should likewise be running on an EC2 occasion in one of the VPCs that you connected with the example.com private facilitated zone. The application utilizes the IP address that it got from Route 53 to build up an association with the database server. On the off chance that you need to course traffic for your area on the web, you utilize a Route 53 open facilitated zone.

How to choose the right Region:

Four factors that you have to check when you choose which one of these numerous worldwide Regions will be the correct one for you? The primary inquiry is truly self-evident, and it has to do with dormancy. Where are your clients found? On the off chance that you have clients for instance that are living in Rio de Janeiro. On the off chance that they live in Rio, it bodes well to run your application out of the Sao Paulo Region. Just in light of the fact that speeds of light will be much nearer. Indeed, you could run over in Frankfurt, yet the separation around the globe to get to your clients is going to cause that additional piece of slack that is essentially unavoidable. That is only a speed of light inquiry. Along these lines, if speed to your client is your main need, at that point absolutely inertness turns into my thought. Be that as it may, there are some different things.

 Few out of every odd Region is evaluated the equivalent since each extraordinary nation has its own arrangement of assessment laws, their own budgetary circumstances, you'll locate precisely the same administrations in various Regions may have various expenses. Presently, you can discover precisely what these expenses are whenever, by basically going to aws.amazon.com and investigate the various Regions, where we'll expressly disclose to your administration by administration precisely what your anticipated costs will be. You may locate there's a noteworthy distinction Region to Region. For instance, our Sao Paulo Region is a great spot, in case you're managing a dormancy issue for your genuine clients. Yet, basically because of nearby duty laws, it likewise happens to be somewhat more costly than a large number of our different Regions. Along these lines, if spending plan is one of your solid contemplations, you may look to one of our North American Regions despite the fact that the inactivity might be more. Be that as it may, legitimate limitations may change the whole discussion by and large. You may have explicit US HIPAA necessities, or you may have European GDPR prerequisites, or suppose, you really have a business it's running in Germany. In which case you may be legally necessary, in light of the kind of burden you're running, that you should run in the Frankfurt server farm. While you'll have extraordinary inactivity in light of the fact that your clients are in Germany at any rate, that this consistency exceeds some other thought on account of legitimate limitations.

Along these lines, ensure you comprehend if the nation you work in has prerequisites that may direct everything immediately. At last, administration accessibility. We attempt to turn each element out to each Region, however once in a while, a fresh out of the plastic new component gets discharged. For instance, at reinvent, We regularly discharge many fresh out of the box new administrations, and those may take a couple of months to really get into each Region around the world. In this way, in the event that you need to attempt one of the fresh out of the plastic new administrations, ensure you know which Region they're working in. It may be working over in Dublin or on the other hand maybe the Northern Virginia Region. You'll locate the correct area for you. Inevitably, they'll presumably be running in each Region. In any case, if it's new and you need to attempt it, look at the Region first. Along these lines, that is the reason you pick one Region over another.
